Supported Features
With "weed mount", the files can be operated as a local file. The following operations are supported.
- file read / write
- create new file
- mkdir
- list
- remove
- rename
- chmod
- chown
- soft link
- hard link
- display free disk space
- copy file range
- lseek
- advisory file locking (
flock(2)and POSIXfcntl(2)byte-range locks) - extended attributes (xattr)
Distributed Lock (cross-mount write coordination)
weed mount can coordinate writers across different mount instances using
the filer's distributed lock manager (DLM). When enabled, opening a file
for writing acquires a cluster-wide lock on the file's filer path, so only
one mount can write a given file at a time. Other mounts that open the same
file for writing block until the holder releases it.
Enabling
Pass -dlm when starting weed mount:
weed mount -filer=localhost:8888 -dir=/mnt/seaweedfs -dlm
DLM is off by default. It is automatically disabled if -writebackCache is
also set, since writeback implies single-writer semantics and the extra
coordination would only add latency. When DLM is disabled, writers across
mounts are unordered — last writer wins on flush.
Flow
sequenceDiagram
participant A as App on Mount A
participant MA as weed mount A<br/>(owner mount-1)
participant F as Filer DLM
participant MB as weed mount B<br/>(owner mount-2)
participant B as App on Mount B
A->>MA: open("/data/file", O_WRONLY)
MA->>F: Lock("/data/file", owner=mount-1, ttl=7s)
F-->>MA: granted
Note over MA,F: Heartbeat renews lock every ~7s
MA-->>A: fd
B->>MB: open("/data/file", O_WRONLY)
MB->>F: Lock("/data/file", owner=mount-2, ttl=7s)
F-->>MB: blocked (held by mount-1)
A->>MA: write / close
MA->>F: flush to filer, then Unlock
F-->>MB: granted (mount-1 released)
MB-->>B: fd
B->>MB: write / close
MB->>F: flush to filer, then Unlock
If mount A crashes without closing, the filer drops the lock after the 7-second TTL and mount B's pending acquire unblocks automatically.
Semantics
- Scope. The lock key is the file's filer path (not the local inode, which is per-mount). Two mounts opening the same path for writing contend on the same key.
- Acquisition. The lock is taken when a handle is opened with any write
flag (
O_WRONLY,O_RDWR,O_APPEND,O_CREAT,O_TRUNC). Read-only opens are not locked. Acquisition is blocking: a second mount'sopen(2)-for-write blocks until the first mount closes the file or the lock TTL expires. - Release. The lock is held for the full lifetime of the file handle and released on close. For handles running the writeback async flush path, the lock is released after the background flush completes — so a reader on another mount after a successful close always sees the flushed data.
- Auto-renewal. The lock is renewed on a 7-second TTL heartbeat while the handle is open. If a mount crashes, the lock frees on TTL expiry.
- Rename and unlink.
rename(2)acquires DLM locks on both the source and destination paths (sorted to avoid A→B / B→A deadlocks) so no other mount can open either path for writing during the rename.unlink(2)of a file that is currently open on this mount coordinates with the held handle's lock. - Owner identifier. Each mount is tagged with
mount-<signature>, which appears in filer lock logs and inweed shell's lock commands for debugging.
Requirements and constraints
- At least one filer address (
-filer=) must be configured; DLM is a filer-hosted service. - DLM is disabled when
-writebackCacheis set (single-writer mode). - DLM coordinates writes only. Concurrent readers on different mounts are never blocked, and they still see flushed data via the filer's metadata.
- DLM does not replace POSIX
fcntl/flockadvisory locks; those remain available and are orthogonal (see the next section).
When to use it
Enable -dlm when multiple weed mount instances may write to the same
files — e.g. a shared build cache mounted on several CI workers, or an
application that runs on multiple nodes and writes to the same path. Leave
it off for single-mount deployments or when each mount writes into its own
subtree, since the extra round-trips add latency on every open-for-write.
Advisory File Locking
SeaweedFS supports advisory file locking over FUSE:
- whole-file locks via
flock(2) - POSIX byte-range locks via
fcntl(2)(F_SETLK,F_SETLKW,F_GETLK)
The locks follow normal close semantics:
- POSIX
fcntllocks are released when the closing lock owner closes the file flocklocks are released with the file description close path
These are advisory locks, so applications must cooperate by taking and honoring them.
Extended Attributes (xattr)
SeaweedFS supports POSIX extended attributes on files and directories via FUSE mount. You can use standard tools like setfattr, getfattr, and xattr to manage custom metadata.
Examples
# Set a custom attribute
setfattr -n user.expire -v "2025-12-01" /mnt/seaweedfs/path/to/file
# Get a custom attribute
getfattr -n user.expire /mnt/seaweedfs/path/to/file
# List all extended attributes
getfattr -d /mnt/seaweedfs/path/to/file
# Remove an extended attribute
setfattr -x user.expire /mnt/seaweedfs/path/to/file
# On macOS, use xattr instead
xattr -w user.expire "2025-12-01" /mnt/seaweedfs/path/to/file
xattr -p user.expire /mnt/seaweedfs/path/to/file
xattr -l /mnt/seaweedfs/path/to/file
xattr -d user.expire /mnt/seaweedfs/path/to/file
Limits
| Limit | Value |
|---|---|
| Max attribute name size | 255 bytes |
| Max attribute value size | 64 KB (65536 bytes) |
Disabling xattr
If you don't need extended attributes, you can disable them with the -disableXAttr flag:
weed mount -filer=localhost:8888 -dir=/mnt/seaweedfs -disableXAttr
Mount as FUSE
This uses seaweedfs/fuse, which enables writing FUSE file systems on Linux and OS X. On OS X, it requires OSXFUSE (https://osxfuse.github.io/).
# assuming you already started weed master, weed volume and filer
weed mount -filer=localhost:8888 -dir=/some/existing/dir -filer.path=/one/remote/folder
weed mount -filer=localhost:8888 -dir=/some/existing/dir -filer.path=/
# example: mount one collection and a folder to a local directory
weed mount -filer=localhost:8888 -dir=~/folder_on_seaweedfs -filer.path=/home/chris -collection=chris
It is also possible use mount and fuse subtype:
cp weed /sbin/weed
mount -t fuse.weed fuse /mnt -o "filer=localhost:8888,filer.path=/"
Or add weed as a mount subtype:
cp weed /sbin/mount.weed
mount -t weed fuse /mnt -o "filer=localhost:8888,filer.path=/"
To mount with multiple filers enclose filer parameter with quotes and separate servers with comma:
cp weed /sbin/mount.weed
mount -t weed fuse /mnt -o "filer='192.168.0.1:8888,192.168.0.2:8888',filer.path=/"
Now you can operate the SeaweedFS files, browsing or modifying directories and files, in local file system. To unmount, just shut it down the "weed mount".
Mount with fstab
weed#fuse /mnt fuse _netdev,filer='192.168.0.1:8888',filer.path=/ 0 0
Mount outside of a SeaweedFS cluster
In addition to connecting to filer server, weed mount also directly connects to volume servers directly for better performance.
However, if the SeaweedFS cluster is started by Kubernetes or docker-compose and
the volume servers only knows its own IP addresses inside the cluster,
weed mount is not able to access the volume servers from outside of the cluster.
weed mount -volumeServerAccess=[direct|publicUrl|filerProxy] option can help here. You can choose to proxy the requests to volume servers via filer.
So only filer needs to be exposed. Or you can choose to expose the public URLs of volume servers.
Multiple mounts with multiple Filers of a SeaweedFS cluster
Updates from one filer are transferred to the other filers. The filers would not be constantly querying the filer stores for updates. Instead, the filers will listen to each other for updates, which is more efficient.
So for the following topology, the updates from one mount can be propagated to other mounts.
mount1 ---> filer1 ---> filer2 ---> mount2
|
+-----> filer3 ---> mount3
However, in most cases, one filer should be enough, since the mount will only get asynchronous metadata updates to filer, and will read and write to the volume servers directly, one filer should be enough to handle most of the work.
filer ---- mount1
|
+------ mount2
|
+------ mount3
Distributed Lock Manager (DLM) for Cross-Mount Write Coordination
When multiple mounts write to the same file concurrently, the default behavior is last-flush-wins — each mount builds its chunk list independently and flushes metadata to the filer. The second flush overwrites the first, silently orphaning the first mount's chunks.
The -dlm flag enables distributed lock coordination across mounts. When enabled:
- Opening a file for writing acquires a distributed lock (blocking until held)
- The lock is auto-renewed for the entire write session
- The lock is released when the file is closed (after flush completes)
- Only one mount can have a file open for writing at a time
- Read-only opens are not locked — readers never block
# Start two mounts with DLM enabled, each pointing to a different filer
weed mount -filer=filer1:8888 -dir=/mnt/seaweed1 -dlm
weed mount -filer=filer2:8888 -dir=/mnt/seaweed2 -dlm
How it works:
The DLM uses the filer's built-in distributed lock service (the same one used by the S3 API). The lock key is the file's inode number, so renames don't break mutual exclusion. The lock TTL is 7 seconds with renewal every 3.5 seconds — if a mount crashes, the lock expires and other mounts can proceed.
mount1 (write-open file) ---> filer1 ---> DLM lock acquired
mount2 (write-open same file) ---> filer2 ---> blocks until mount1 closes
Requirements:
- At least 2 filers in the same
-filerGroupfor the lock ring to function - All mounts that write to shared files should use
-dlm; mounts without-dlmbypass the lock entirely
When to use:
- Multiple mounts writing to overlapping files (shared data pipelines, collaborative workflows)
- When data integrity matters more than maximum write throughput
When NOT to use:
- Single mount or mounts writing to disjoint files — DLM adds unnecessary overhead
- Workloads where last-writer-wins is acceptable
Mount directory on host from docker-compose
If docker compose is being used to manage the server (eg. https://github.com/seaweedfs/seaweedfs/wiki/Getting-Started#with-compose) it's possible to mount a directory on the host with docker privileged mode like so:
mount_1:
image: chrislusf/seaweedfs
cap_add:
- SYS_ADMIN
devices:
- "/dev/fuse:/dev/fuse"
volumes:
- "/hostdata/mount:/mnt:z,shared"
entrypoint: weed
command: mount
environment:
- DIR=/mnt/data
- DIRAUTOCREATE=true
- FILER=localhost:8888,localhost:8889
depends_on:
- master
- filer
Weed Mount Architecture
weed mount has a persistent client connecting to Master, to get the location updates of all volumes.
There are no network round trip to lookup the volume id location.
weed mount also continuously synchronize all metadata updates with the Filer. So later reads would not need a network read from Filer, and the metadata reads, e.g., directory listings, are all local operations.
For reads:
- Mount optionally lookups volume Id => Weed Filer => Weed Master
- Mount Reads File Chunks => Weed Volume Servers

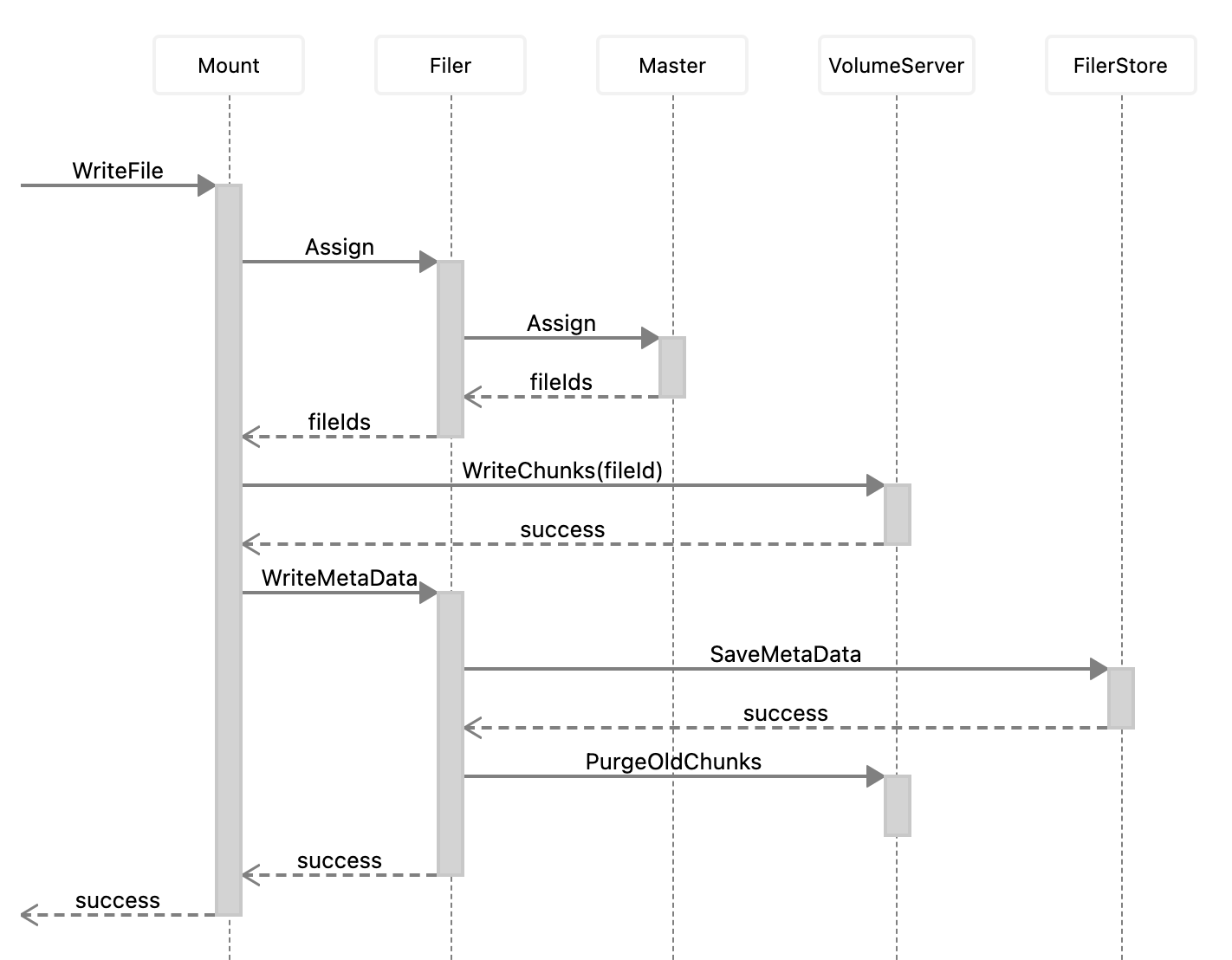

For writes:
- Mount uploads data to Weed Volume Servers, and breaks the large files into chunks.
- Mount writes the metadata and chunk information into Filer and then into Filer database.
Bounding the write buffer (-writeBufferSizeMB)
While an application is writing, weed mount buffers each outstanding chunk in RAM (for sequential writes) or in a swap file on local disk — by default under -cacheDir (i.e. os.TempDir(), which is usually /tmp on Linux). Once a chunk is full it is handed to an uploader goroutine that pushes it to a volume server; the buffered chunk is only released when the upload has completed and no reader is still referring to it.
Normally these uploads drain fast enough that the buffer stays small. But if volume servers stall — for example every candidate volume is at the size limit and the master hasn't yet rotated assignments — the upload queue grows, sealed chunks pile up, and the swap file can grow until /tmp fills. A large rclone sync into such a cluster has been observed to fill a 1.8 TiB /tmp partition before the mount process is killed.
-writeBufferSizeMB=N (default 0 = unlimited, preserving the old behavior) installs a single byte budget that is shared across every open file handle on a mount. When the budget is reached, additional writes block inside the FUSE write path until an earlier upload completes and frees its slot — so swap overflow becomes natural back-pressure on the client instead of unbounded disk growth.
# Cap the total write buffer at 2 GiB, keep swap off /tmp.
weed mount \
-filer=localhost:8888 -dir=/mnt/seaweedfs -filer.path=/ \
-cacheDirWrite=/var/cache/seaweedfs \
-writeBufferSizeMB=2048 \
-chunkSizeLimitMB=32 \
-concurrentWriters=128
Notes:
- The budget is counted in whole chunks of
-chunkSizeLimitMB, not in arbitrary bytes, so the effective maximum isfloor(writeBufferSizeMB / chunkSizeLimitMB) * chunkSizeLimitMB. - Choose
writeBufferSizeMB≥chunkSizeLimitMB— otherwise a single chunk would never fit. The accountant allows an oversized reservation only when the budget is empty, to keep a single writer from starving itself. - The flag is independent of
-cacheCapacityMB, which sizes the read chunk cache on disk. -cacheDirWrite(if unset, falls back to-cacheDir, which defaults toos.TempDir()) is where the swap file lives. When upload stalls are possible it is strongly recommended to point this at a dedicated disk — not/tmp— and to set-writeBufferSizeMBbelow the available space on that disk.- The cap is a mount-global limit, not per-file. With many concurrently open writers it will serialize them rather than corrupt any of them.
Tuning kernel FUSE concurrency (-fuse.maxBackground, -fuse.congestionThreshold)
The Linux kernel FUSE driver caps the number of asynchronous in-flight requests it will hand to a userspace filesystem at once. Two knobs control this, both exposed under /sys/fs/fuse/connections/<id>/:
max_background— hard cap on background (asynchronous) requests in flight.congestion_threshold— when in-flight requests reach this value, the kernel marks the bdi as congested, throttling new submissions. Default is3/4 * max_background.
Default max_background in weed mount is 128, which is fine for most workloads. Heavy parallel-upload workloads (large rclone/rsync syncs, ML dataset ingest, many writer processes) can saturate that queue and become latency-bound on the FUSE channel itself rather than on volume servers.
-fuse.maxBackground=N and -fuse.congestionThreshold=N let you set both at mount time, so the values persist across reboots without a startup script that writes to /sys/fs/fuse/connections/<id>/...:
weed mount \
-filer=localhost:8888 -dir=/mnt/seaweedfs \
-fuse.maxBackground=2048
With only -fuse.maxBackground=2048, the kernel sets max_background=2048 and derives congestion_threshold=1536 (3/4 of 2048) on the new FUSE connection — equivalent to:
echo 2048 | sudo tee /sys/fs/fuse/connections/<id>/max_background
echo 1536 | sudo tee /sys/fs/fuse/connections/<id>/congestion_threshold
If you want a non-3/4 ratio (for example, more headroom before congestion kicks in), set both:
weed mount \
-filer=localhost:8888 -dir=/mnt/seaweedfs \
-fuse.maxBackground=2048 \
-fuse.congestionThreshold=1900
Notes:
- These flags only change a kernel queue-depth limit; they do not allocate memory in
weed mountitself. Pair with-concurrentWriters/-concurrentReadersif the userspace side is also the bottleneck. -fuse.congestionThreshold=0(the default) tells the kernel-FUSE layer to use the conventional3/4 * max_background. The kernel silently clamps the value tomax_backgroundif it is set higher.- Raising these values is cheap; raising them without measuring is rarely useful. Confirm queue saturation (e.g. via FUSE-channel latency or stalled-writer symptoms) before tuning.
Weed Mount Performance
Compared to any other distributed file systems, the weed mount performance should exceed most other solutions, or at least on par. This is because weed mount has multiple optimization techniques:
- asynchronously replicate the metadata updates to local db. There are no remote metadata read operations at all.
- cached most recently accessed data.
- batch small writes into large writes.
Due to the limitation of FUSE and network IO, the performance of the mounted file system is expected to be less than local disk. weed mount still needs to write to remote filer server and volume servers to ensure data persistence.
So if your data is temporary local files, try to move the writes to other unmounted directories. If the data is shared across the distributed file system, the additional cost to write should be acceptable for most cases.
For example, you can create a soft link to a directory or a file on a local disk, and put temp data there.
Sysbench Benchmark Results
"sysbench" is used here. The mount command line is weed mount -dir=xx
If you have better benchmarking tools, please share your results.
$ brew install sysbench
$ cd /a/mounted/folder
$ sysbench --test=fileio --file-total-size=1G prepare
$ sysbench --test=fileio --file-total-size=1G --file-test-mode=rndrw --max-time=60 --max-requests=0 --num-threads=1 --file-block-size=1m run
WARNING: the --test option is deprecated. You can pass a script name or path on the command line without any options.
WARNING: --max-time is deprecated, use --time instead
sysbench 1.0.20 (using system LuaJIT 2.1.0-beta3)
Running the test with following options:
Number of threads: 1
Initializing random number generator from current time
Extra file open flags: (none)
128 files, 8MiB each
1GiB total file size
Block size 1MiB
Number of IO requests: 0
Read/Write ratio for combined random IO test: 1.50
Periodic FSYNC enabled, calling fsync() each 100 requests.
Calling fsync() at the end of test, Enabled.
Using synchronous I/O mode
Doing random r/w test
Initializing worker threads...
Threads started!
File operations:
reads/s: 958.24
writes/s: 638.84
fsyncs/s: 2045.67
Throughput:
read, MiB/s: 958.24
written, MiB/s: 638.84
General statistics:
total time: 60.0045s
total number of events: 218458
Latency (ms):
min: 0.02
avg: 0.27
max: 166.61
95th percentile: 1.01
sum: 59775.56
Threads fairness:
events (avg/stddev): 218458.0000/0.00
execution time (avg/stddev): 59.7756/0.00
The above is single-threaded. The following uses 16 threads.
$ sysbench --test=fileio --file-total-size=1G --file-test-mode=rndrw --max-time=60 --max-requests=0 --num-threads=16 --file-block-size=1m run
WARNING: the --test option is deprecated. You can pass a script name or path on the command line without any options.
WARNING: --num-threads is deprecated, use --threads instead
WARNING: --max-time is deprecated, use --time instead
sysbench 1.0.20 (using system LuaJIT 2.1.0-beta3)
Running the test with following options:
Number of threads: 16
Initializing random number generator from current time
Extra file open flags: (none)
128 files, 8MiB each
1GiB total file size
Block size 1MiB
Number of IO requests: 0
Read/Write ratio for combined random IO test: 1.50
Periodic FSYNC enabled, calling fsync() each 100 requests.
Calling fsync() at the end of test, Enabled.
Using synchronous I/O mode
Doing random r/w test
Initializing worker threads...
Threads started!
File operations:
reads/s: 2152.89
writes/s: 1435.49
fsyncs/s: 4625.57
Throughput:
read, MiB/s: 2152.89
written, MiB/s: 1435.49
General statistics:
total time: 60.0198s
total number of events: 490963
Latency (ms):
min: 0.03
avg: 1.95
max: 215.50
95th percentile: 9.22
sum: 958761.77
Threads fairness:
events (avg/stddev): 30685.1875/161.07
execution time (avg/stddev): 59.9226/0.00
Sysbench Result Analysis
sysbench works on 128 files, 8MiB each. It will do random read and write on these files.
weed mount has default cacheCapacityMB=1000, but because the cache has different section for different sized chunks, the actual cache used for this workload is about 500MB. However, due to the randomness, the actual hit rate is not high.
Even with the cache, the data are persisted on the filer and volume servers first, then cached locally.
Common Problems
Unmount
Sometimes weed mount can not start if the last mount process was not cleaned up.
You can clean up with these commands. Try any of them until it works:
// on mac
sudo umount /the/mounted/dir
diskutil unmount force /the/mounted/dir
sudo umount -f /the/mounted/dir
sudo umount -l /the/mounted/dir
// on linux
sudo umount -f /the/mounted/dir
sudo umount -l /the/mounted/dir
Still fail to mount on MacOS
From https://github.com/osxfuse/osxfuse/issues/358
FUSE needs to register a virtual device for exchanging messages between the kernel and the actual file system implementation running in user space. The number of available device slots is limited by macOS. So if you are using other software like VMware, VirtualBox, TunTap, Intel HAXM, ..., that eat up all free device slots, FUSE will not be able to register its virtual device.
Samba share mounted folder
From https://github.com/seaweedfs/seaweedfs/issues/936
The issue is with samba.conf. If you see NT_STATUS_ACCESS_DENIED error, try to add force user and force group to your samba.conf file.
[profiles]
comment = Users profiles
path = /home/chris/mm
guest ok = yes
browseable = yes
create mask = 0775
directory mask = 0775
force user = root
force group = root
What does "df" output means?
Size: total number of volumes * volume size limit
Used: (Logical Total Size of files - Logical Deleted File Size) * replication = physical disk size taken
Available = Size - Used
Can't mount as non-root user
From https://github.com/seaweedfs/seaweedfs/issues/877
Workaround is to use Linux capabilities on weed executable.
setcap cap_net_raw,cap_net_admin,cap_dac_override+eip /usr/local/bin/weed
After that you need to use "weed mount" with option allowOthers=false
